FMXTBitmapPixels (Delphi)

Description

This example shows how to use the TBitmap.Pixels property. This sample draws and fills the rectangle on an image, pixel by pixel.

To build and test this example, create a FireMonkey HD Application - Delphi, then add the next objects to the form:

• A TImage to display the initial TBitmap.
• A TImage to display the result.
• Two TLabels, one for each TImage.
• A TButton to draw on the initial image.
• A TOpenDialog and a TButton to load the image to be customized.

Add the following code to the OnClick event handlers of the load button.

Code

procedure TForm1.Button2Click(Sender: TObject);
begin

    if OpenDialog1.Execute then
    begin
      Image1.Bitmap.LoadFromFile(OpenDialog1.FileName);
    end;
end;

Add the following code to the OnClick event handlers of the other button.

Code

procedure TForm1.Button1Click(Sender: TObject);
var
  MyBitmap: TBitmap;
  X, Y: Integer;
begin
  MyBitmap := TBitmap.Create(0, 0);
  try
    if Image1.Bitmap.IsEmpty then
      // Display a message when there is no image loaded
      MessageDlg('There is no image to customize:', TMsgDlgType.mtWarning,
        [TMsgDlgBtn.mbOk], 0)
    else
    begin
      // A copy of the initial bitmap
      MyBitmap.Assign(Image1.Bitmap);
      // Changes the color of certain pixels
      for X := 20 to 200 do
        for Y := 10 to 100 do
          MyBitmap.Pixels[X, Y] := claLime;
      // Displaying the result
      Image2.Bitmap := MyBitmap;
    end;
  finally
    MyBitmap.Free;
  end;
end;

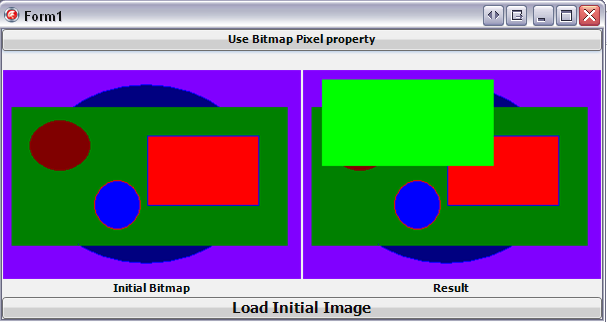

The result should look like in the following image:

Uses

• FMX.Types.TBitmap.Pixels ( fr | de | ja )

• FMX.ObjectsTImage.Bitmap ( fr | de | ja )
