Using Web Reports

Go Up to Web Report

When you use ER/Studio BA to create an HTML Web report, the application produces a folder for the workspace and all associated projects, models, diagrams, and elements.

1 In the left pane, click the name of any diagram and the Web Report displays a graphic of that diagram in the right pane.

2 Click any element in the tree and the Web Report displays, in the right pane, the element’s properties in a tabular format.

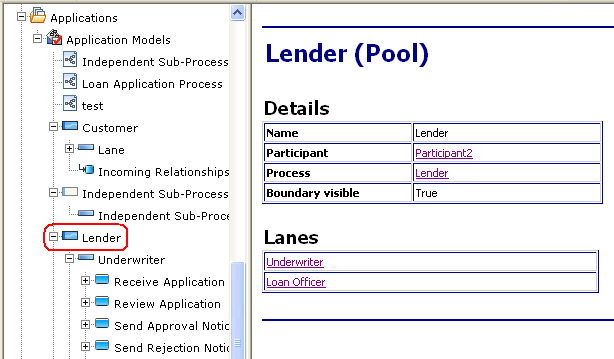

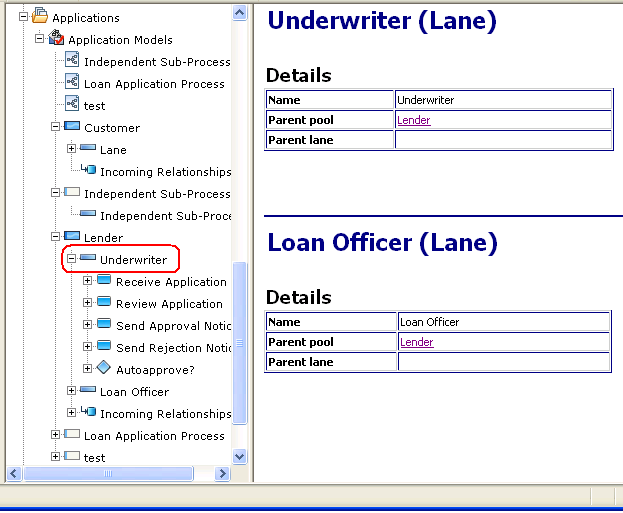

3 Where applicable, a link is provided to a related element. For example, in the following graphic, the lane labeled “Underwriter” is a child of the pool “Lender”.

4 When you click on the hyperlink “Lender”, the web page for that element opens, displaying the details for that pool.
