MongoDB Support

Go Up to Supported Database Platforms

MongoDB is a different type of database. It does not have tables like a relational database, but rather "collections" which each collection holds a set of documents. Each document, which can be thought of as a "row" in a relational table, is usually serialized as JSON data. Data Architect reverse engineers this JSON data and produces a schema of the data found. It also looks at existing relationships between collections, and then adds these to the schema.

For the hierarchical structures in these JSON documents, Data Architect renders these as rolled-up structures inside the Collections for ease of viewing. It also generates a logical data model based on the objects found within the JSON.

ER/Studio Data Architect supports MongoDB authentication of username and password. No authentication is also supported.

Generating a Physical Data Model for MongoDB

The Generate Database wizard differs for each target platform, but for MongoDB models there are the following options:

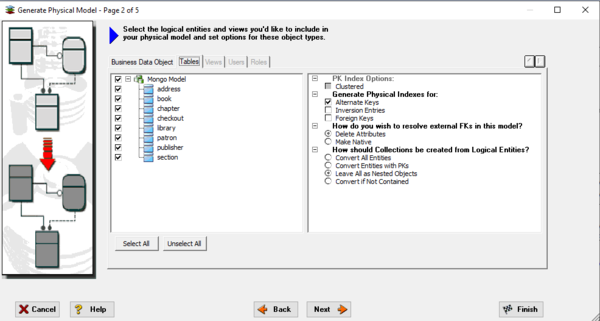

Page 2 of the wizard

Propagated Foreign Key properties can be removed from generated objects or made as native fields which may be useful later to connect objects together elsewhere via code.

There is an option to select how you want ER/Studio Data Architect to create collections from entities:

• Convert All Entities - all logical entities become Collections
• Convert Entities with PKs - all logical entities with primary keys become Collections
• Leave All as Nested Objects - all logical entities become Nested Objects
• Convert if Not Contained - takes a rules-based approach as detailed below using the containment properties set in the logical

Convert if Not Contained

The generator wizard uses the following steps:

1. Create an object for each entity in the logical model. Primary key attributes become standard fields.
2. Logical relationship lines then generate either a referencing relationship or a containment relationship.
3. For each generated object, the wizard reviews whether the object has a containing relationship from any other object. If it does, it becomes a Nested Object. If not, it becomes a top-level Collection.
4. All Collections are given a surrogate primary key "_id".
5. For referencing relationships, primary keys are propagated.

Rolled Up View

The object view is useful to understand the reuse of objects and edit the cardinality to Nested Objects. You can also select a rendering of the model that is easier to visualize the hierarchical nature of the model.

To use the rolled-up view

1. On the Diagram tab, click Diagram/Display Options.
2. On the Object tab, check Roll Up Contained Objects.

Forward Engineering

For more information about forward engineering MongoDB, see Generating a Script File or Database.

The Generate Database wizard produces sample JSON output for each Collection.

Reverse Engineering

For more information about reverse engineering MongoDB, see Reverse Engineer MongoDB Walkthrough.

Connecting to MongoDB

Ensure that you have network access to your MongoDB server. The default port is 27017 and should be open for incoming connections on the MongoDB server firewall.

The default MongoDB setup on some installations use the BindIP section of the config file to bind the listening port to 127.0.0.1. Unless your ER/Studio Data Architect installation is on the same server, this must include the interface to which you are connecting.

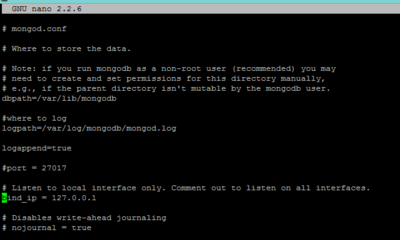

The following image shows the default setting. The list is comma separated and so the server network interface would be added to this in the form of:

bind_ip = 127.0.0.1,10.150.100.90

where 10.150.100.90 is the network address of the MongoDB server.

You can test the connection by using telnet to connect to the port. Verifying that the port is accepting connections by using the following command in a terminal\command window, replacing the 10.150.100.90 with your server's address. The telnet window appears blank if the connection is available.

telnet 10.150.100.90 27017

To connect with a reverse engineer wizard

1. From the file menu, click File > New.
2. Select Reverse-engineer an existing database, and then click Login.
3. In the Reverse Engineer wizard, specify the Connection Type.
4. Specify the Database Type.
5. Add the connection details to the Datasource box.

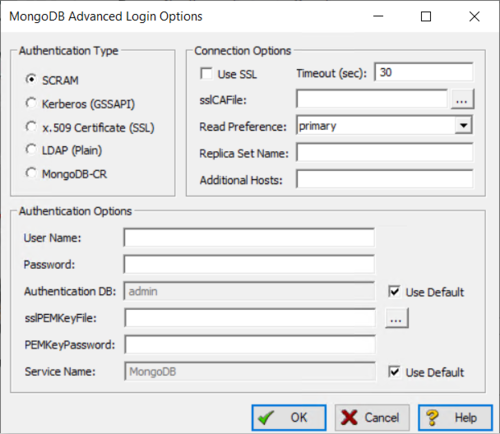

6. If required, add authentication details by opening the advanced options button.

Note: MongoDB-CR is deprecated in MongoDB 4.0 and later.

Note: Note that it is possible to complete the reverse engineer wizard on a MongoDB datasource without having permission to do so. However as you do not have permission, nothing is imported.

Document sampling

Because MongoDB documents can be in any type of format, the documents must be queried before you can reverse engineer the database. The Document Sample Size option on Page 2 of the Reverse Engineer wizard allows you to specify how many documents are used for sampling. The default is 100. Should any documents that have a different format not be sampled, the reverse engineer fails.

Creating Collections

When the reverse engineer occurs, a "union" of documents create the collection. The wizard scans through multiple instances of documents and merge the fields it finds into the collection.

	Document 1	Document 2	Collection - author
Field 1	"_id": 2	"_id": 3	_id (PK) - NumberDouble
Field 2	"awards"	"awards"	awards - Array(Object)
Field 3	"name"		name - Object
Field 4	"title"	"title"	title - String

Nested Objects

Where objects are nested within objects, the wizard creates separate objects that are created with a containment relationship. For example the following JSON object has nested objects within the "name" object:

"name": {
 "first": "John",
 "last": "Smith"
 },

Tip: Separate object creation is useful for improved modeling. For example, nested objects such as address can be shared between different objects rather than duplicated. This also allows modifications to be made to all address fields without having to change each nested item individually.

Switching Object Classes

Use the Switch Object Class option in the Insert ribbon to switch MongoDB objects between Collection or Nested Object.

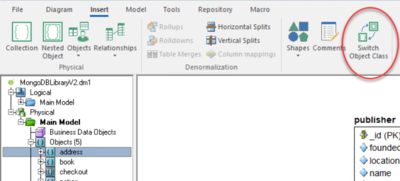

Once you select the object you want to switch, click Switch Object Class in the Insert ribbon, as shown in the following image.

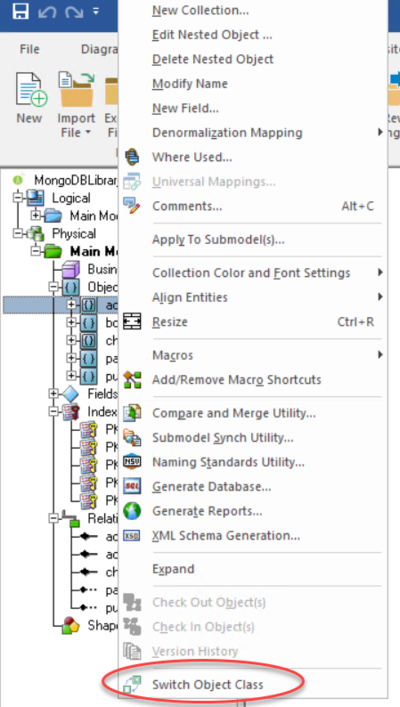

You also can make this switch by using the right-click option on the diagram or the Explorer tree.

ID Fields

MongoDB automatically creates an _id field (ObjectID) which is added to every collection after a reverse engineer. The exception is objects that are created from nested objects as they are not assigned an _id by MongoDB.

Because of the design of a MongoDB database everything is optional in the related editors, except for the _id field.
