Description

The following example shows how to use new text layout features.

The example contains the procedures describing how to render text on a TImage object and how to use the PositionAtPoint, RegionForRange and ConvertToPath methods.

To replicate this example, create a new FireMonkey HD application and from the Tool Palette, add the following components on your form:

From the Object Inspector create event handlers for the OnCreate event of the TForm, the OnPaint event of the TImage and the OnClick event of the each TButton.

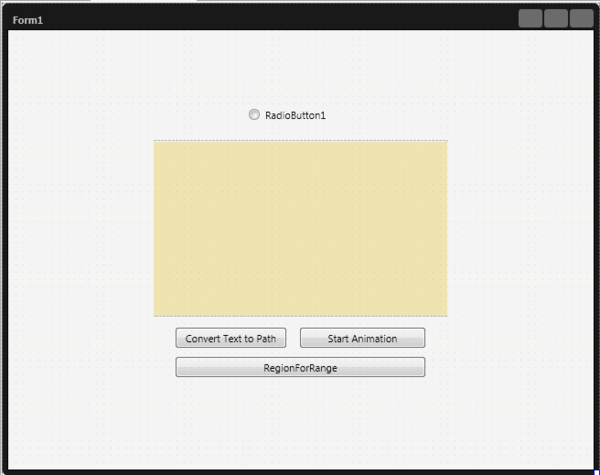

  • The result at desing time:
TextLayout Design Time.png

Code

Add the following code to the OnCreate event handler of the TForm.

procedure TForm1.FormCreate(Sender: TObject);
begin
  RadioButton1.Position.X := Image1.Position.X - 5;
  RadioButton1.Position.Y := Image1.Position.Y - 5;
  RadioButton1.Text := '';
end;


Add the following code to the OnPaint event handler of the TImage.

procedure TForm1.Image1Paint(Sender: TObject; Canvas: TCanvas;
  const ARect: TRectF);
var
  WPosition: Integer;
begin
  MyLayout := TTextLayoutManager.DefaultTextLayout.Create;
  MyLayout.BeginUpdate;
  MyLayout.TopLeft := TPointF.Create(0, 0);
  MyLayout.Font.Size := 78;
  MyLayout.Font.Family := 'Tahoma';
  MyLayout.Font.Style := [TFontStyle.fsBold];
  MyLayout.Text := 'TEXT';
  MyLayout.Color := TAlphaColorRec.Brown;
  WPosition := MyLayout.PositionAtPoint(TPointF.Create(159, 120));
  MyLayout.AddAttribute(TTextRange.Create(WPosition, 3),
    TTextAttribute.Create(TFont.Create, TAlphaColorRec.Black));
  MyLayout.EndUpdate;
  MyLayout.RenderLayout(Canvas);
end;

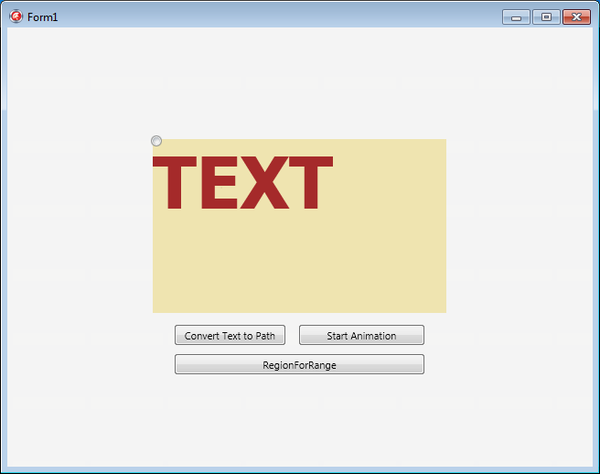

  • The result at runtime:
TextLayout Render.png

Add the following code to the OnClick event handlers of the TButton for Convert Text to Path and Start Animation:

procedure TForm1.Button1Click(Sender: TObject);
var
  PathD: TPathData;
begin
  PathAnimation1 := TPathAnimation.Create(Self);
  PathAnimation1.Parent := RadioButton1;
  PathD := TPathData.Create();
  MyLayout.ConvertToPath(PathD);
  PathAnimation1.Path := PathD;
  PathAnimation1.Loop := True;
  PathAnimation1.Duration := 50;
end;

procedure TForm1.Button2Click(Sender: TObject);
begin
  PathAnimation1.Start;
end;

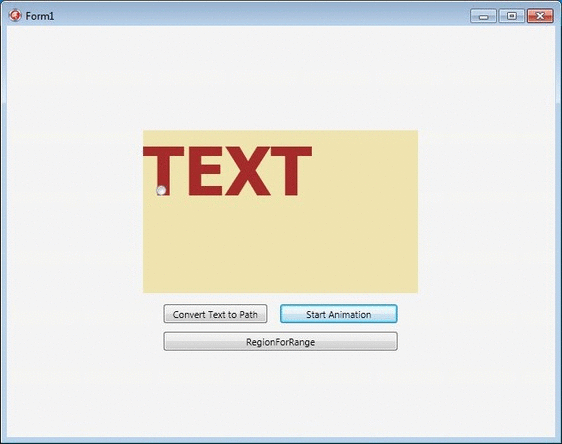

  • The result at runtime:
TextLayout Animation.gif

Add the following code to the OnClick event handler of the TButton for RegionforRange:

procedure TForm1.Button3Click(Sender: TObject);
var
  MyRects: TRegion;
begin
  MyRects := MyLayout.RegionForRange(TTextRange.Create(1, 1));
  Image1.Bitmap.Canvas.BeginScene;
  Image1.Bitmap.Canvas.DrawRect(MyRects[0], 0, 0, AllCorners, 100);
  Image1.Bitmap.Canvas.EndScene;
end;

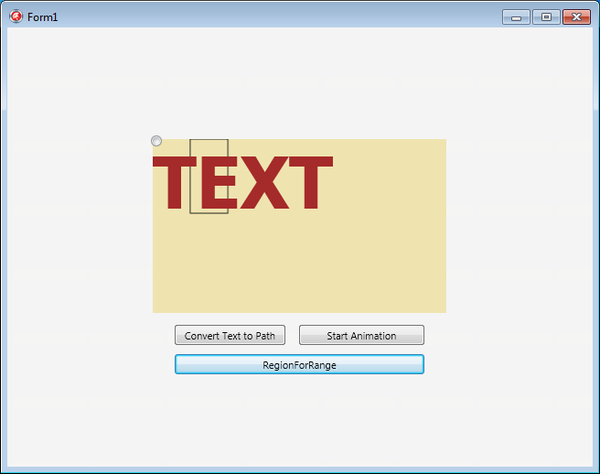

  • The result at runtime:
TextLayout RegionForRange.png

Uses
